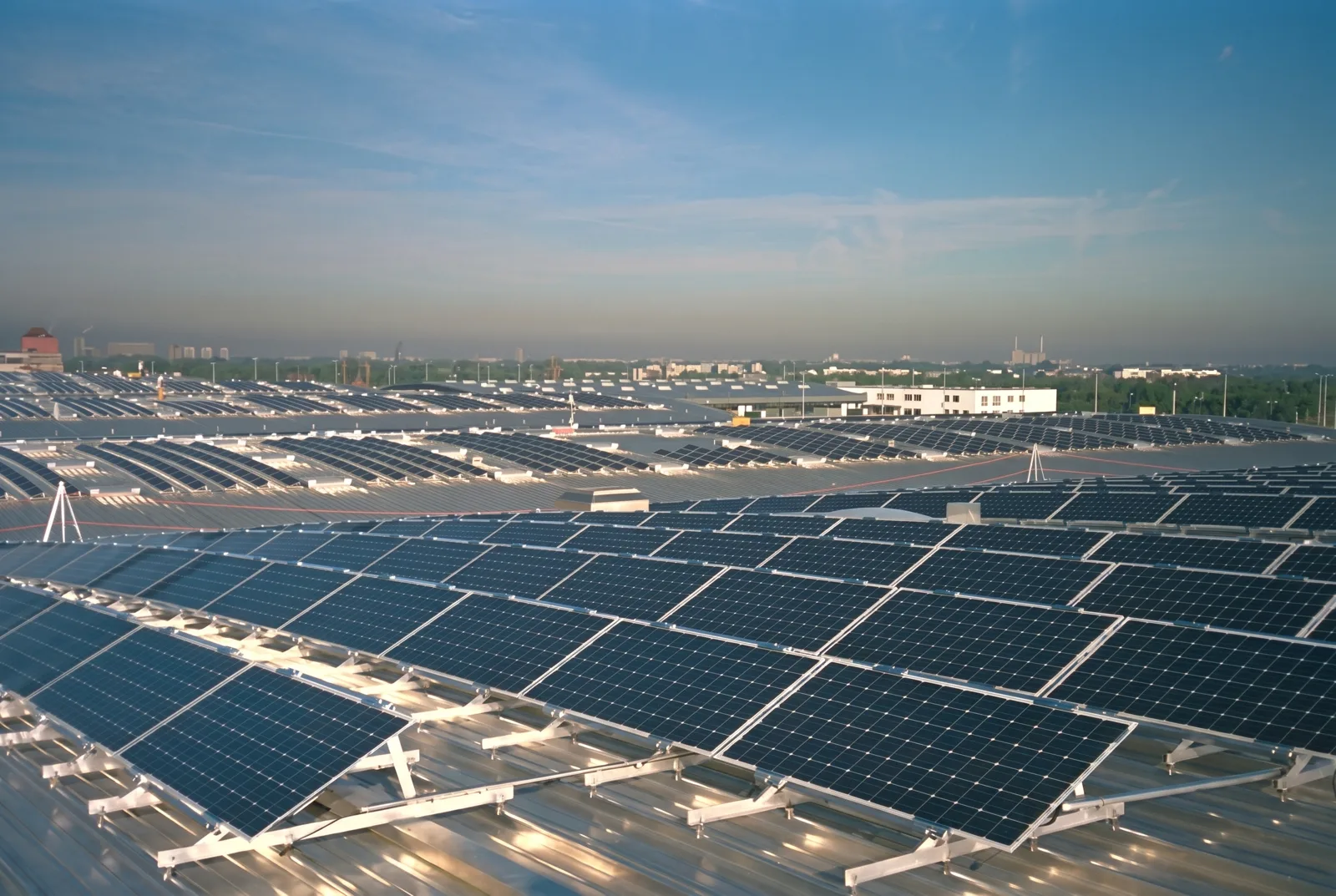

Large rooftop solar array in clear light

All 16 modules, with their datasheets

Sixteen Siemens modules from the SM, SP, SR and ST series, with datasheet values, calculated figures and typical applications.

Siemens Solar sold crystalline modules through the 1990s and, from 1998, CIS thin-film modules, into the early 2000s. The history page lists what the company’s own press releases say; it covers the company’s own announcements up to 2000. Many of the modules are still on roofs, masts and boats. Owners keep searching for the same things: what is this panel, what voltage and current does it give, will a modern controller accept it, and what can replace it.

This reference answers those questions from the original datasheets. Each module has its own page with the full datasheet, a to-scale outline, an indicative I–V curve, derived figures that are clearly marked as calculated, and the applications Siemens recommended it for.

16modules covered

4series: SM, SP, SR, ST

5–110 Wrated power range

1998first CIS thin-film series production

The 16 modules

6 W

Siemens SM612 V · single-crystal silicon

10 W

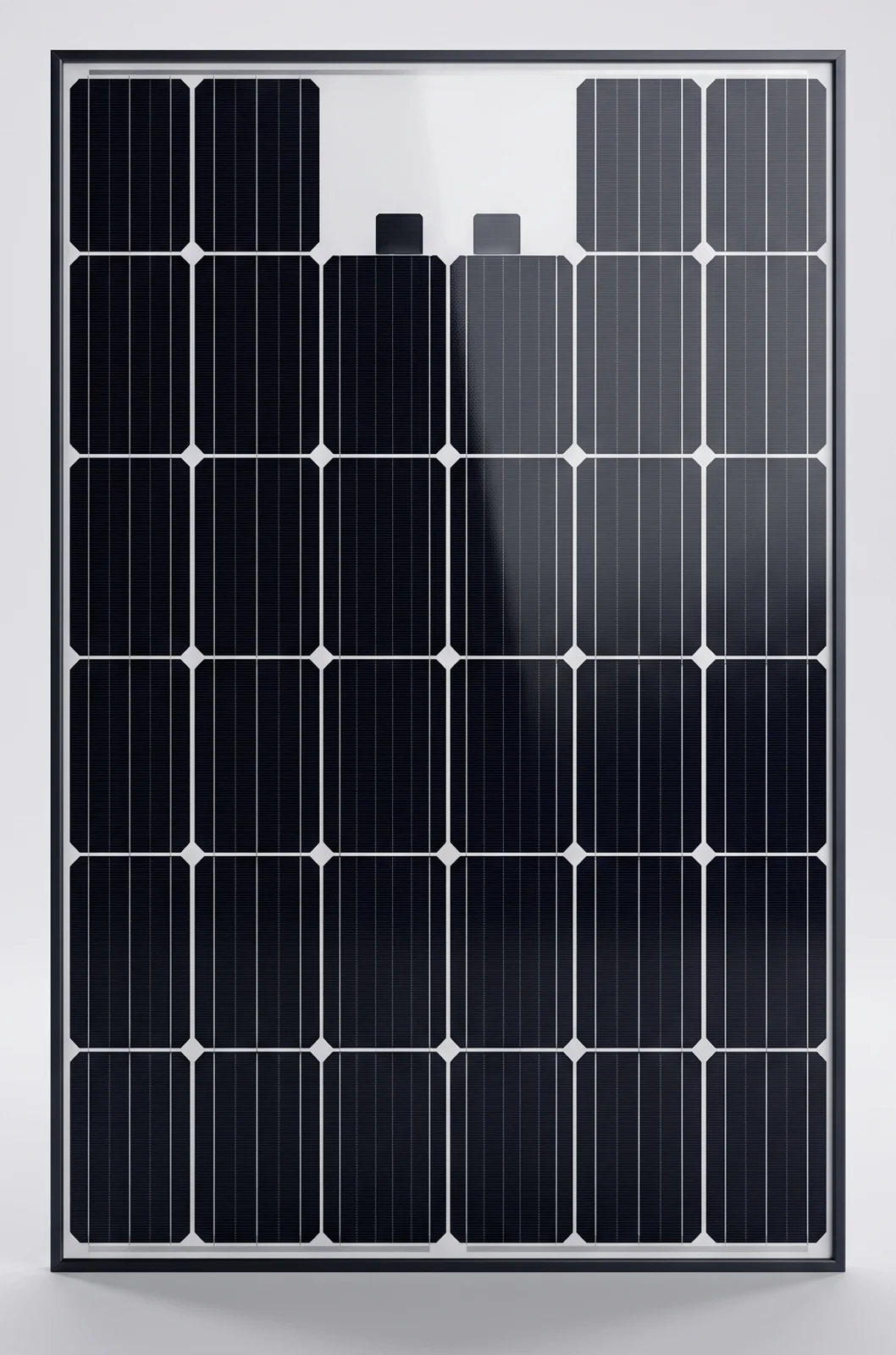

Siemens SM1012 V · single-crystal silicon

20 W

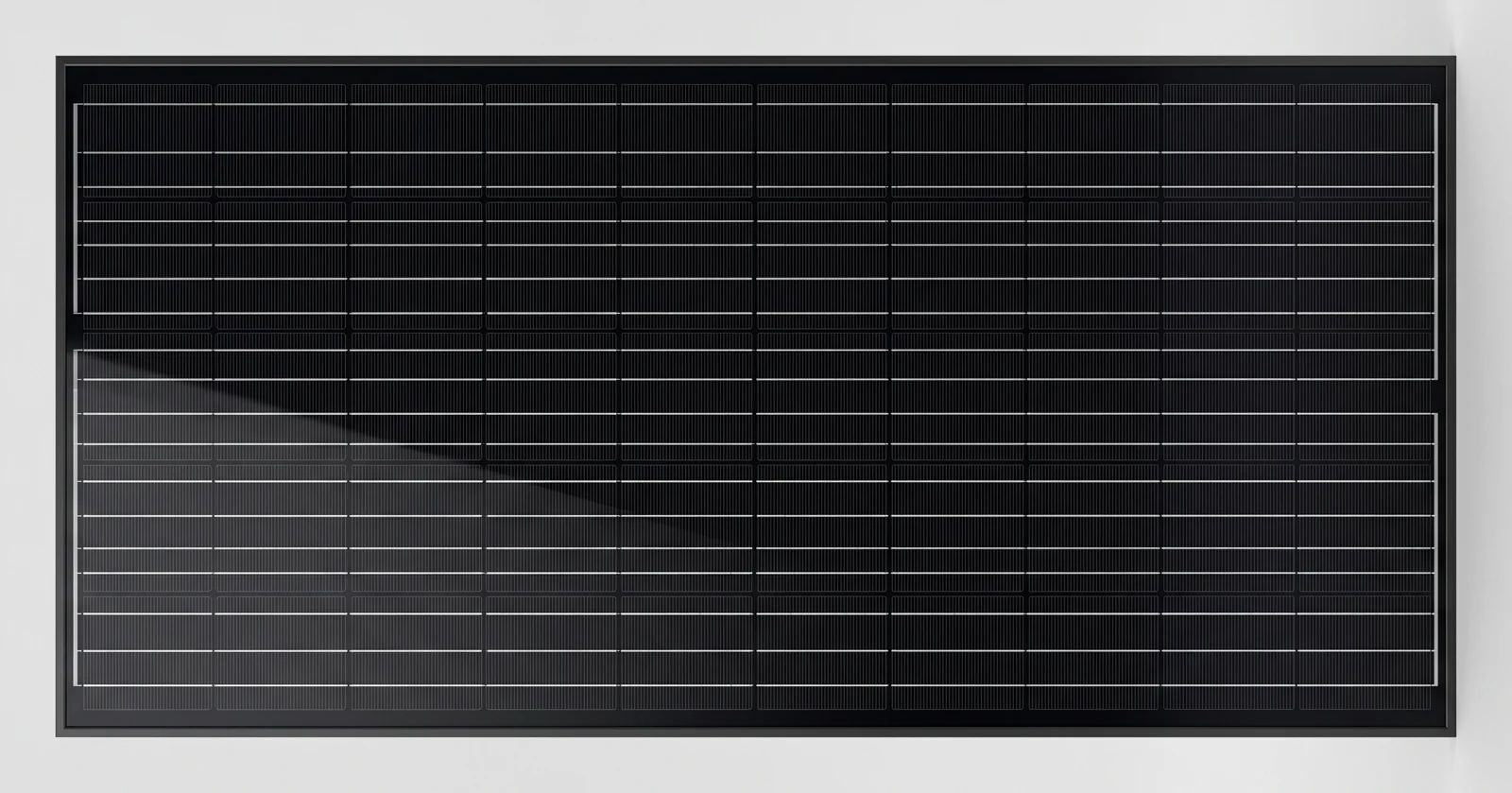

Siemens SM2012 V · single-crystal silicon

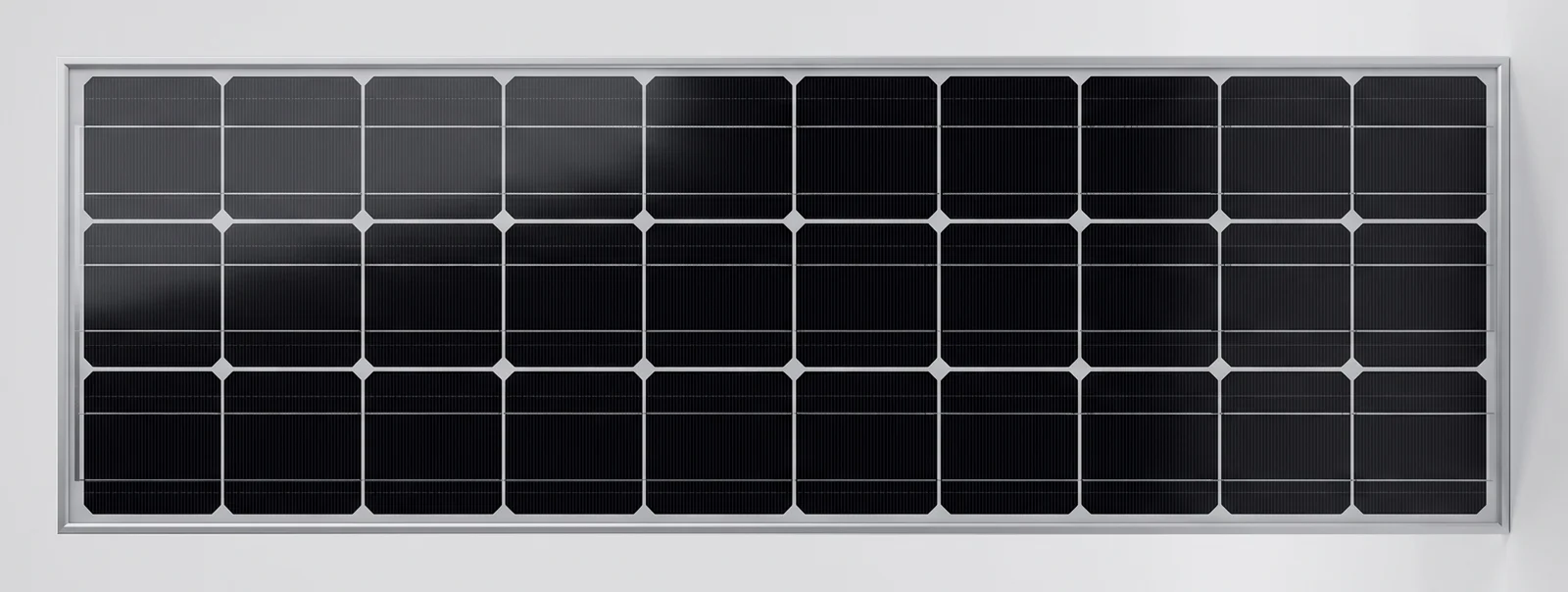

46 W

Siemens SM4612 V · single-crystal silicon

50 W

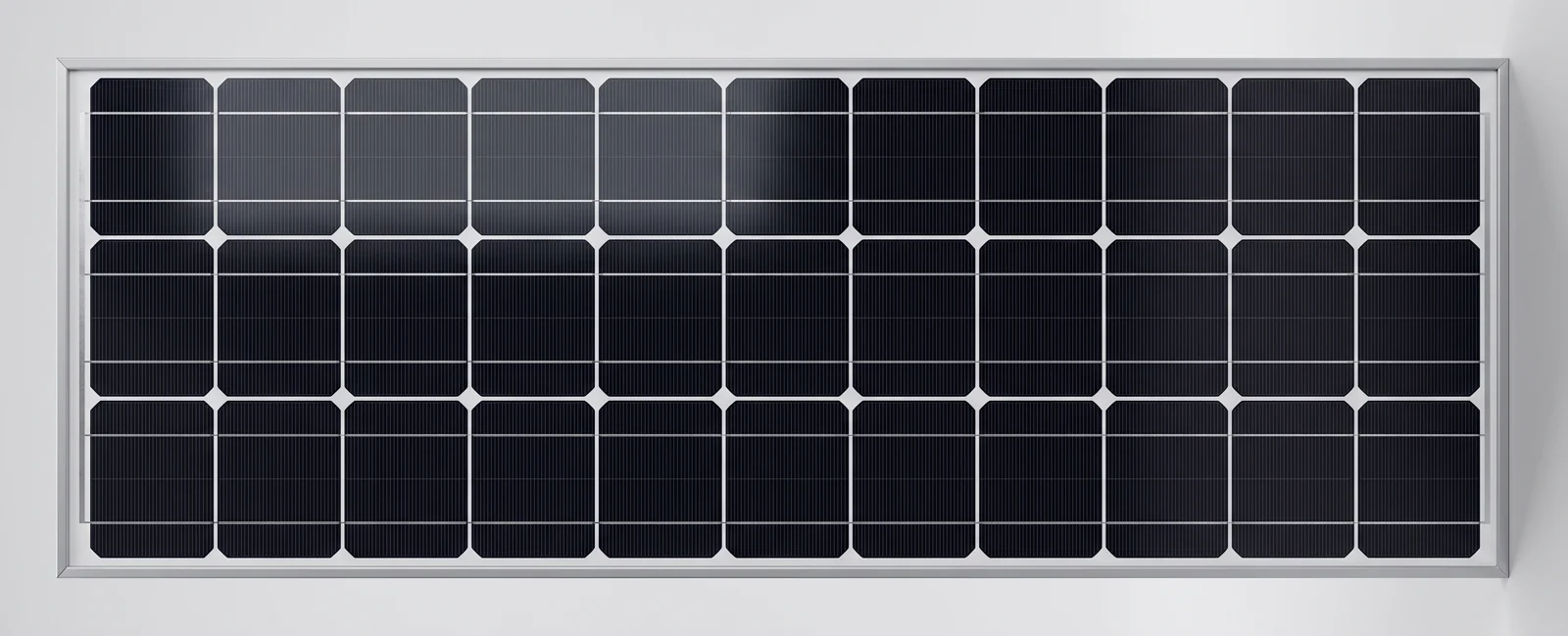

Siemens SM50-H12 V · single-crystal silicon

55 W

Siemens SM55 / SM5012 V · single-crystal silicon

110 W

Siemens SM110 / SM10024 V / 12 V · single-crystal silicon

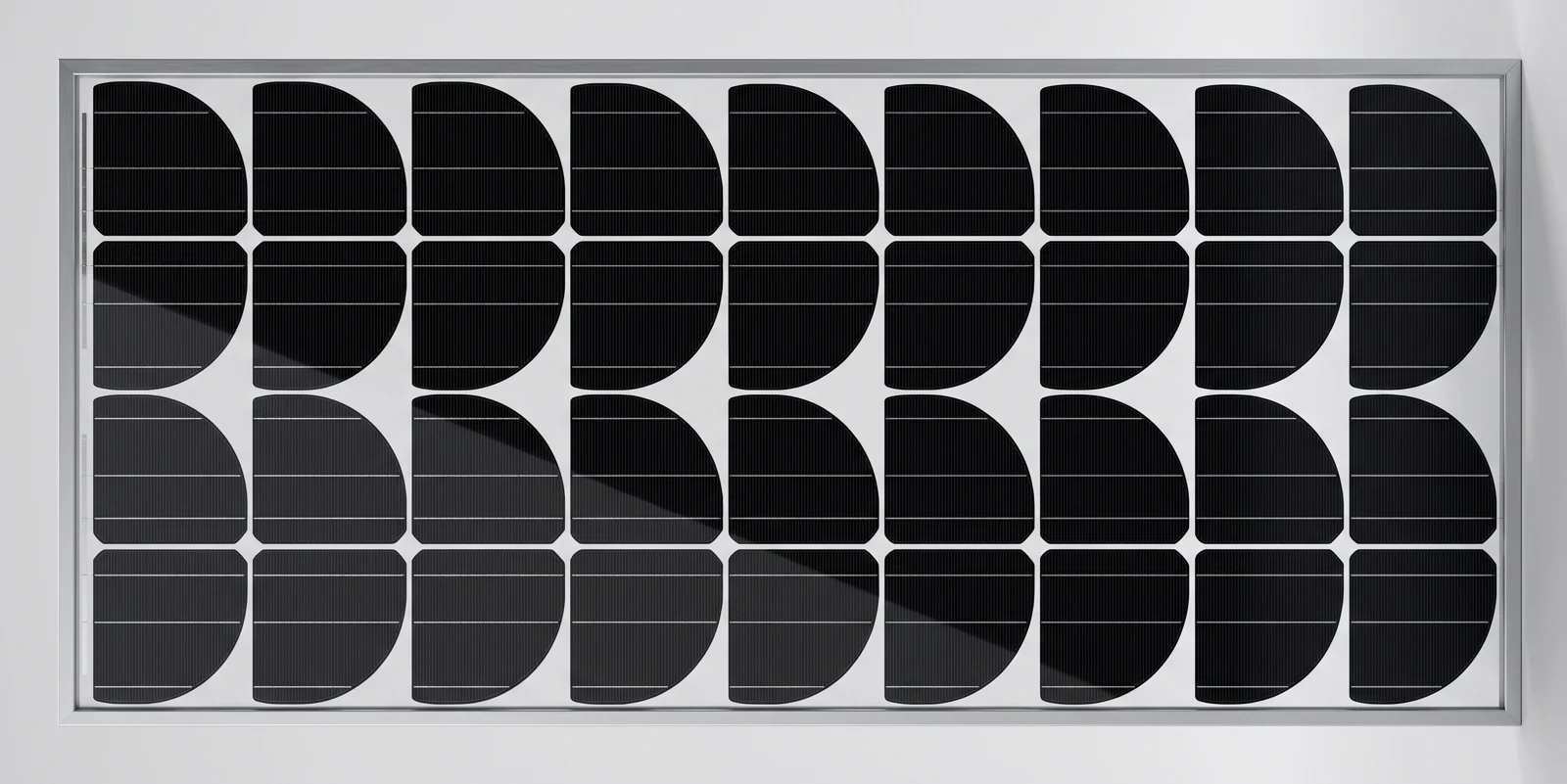

18 W

Siemens SP1812 V / 6 V · silicon (sp series)

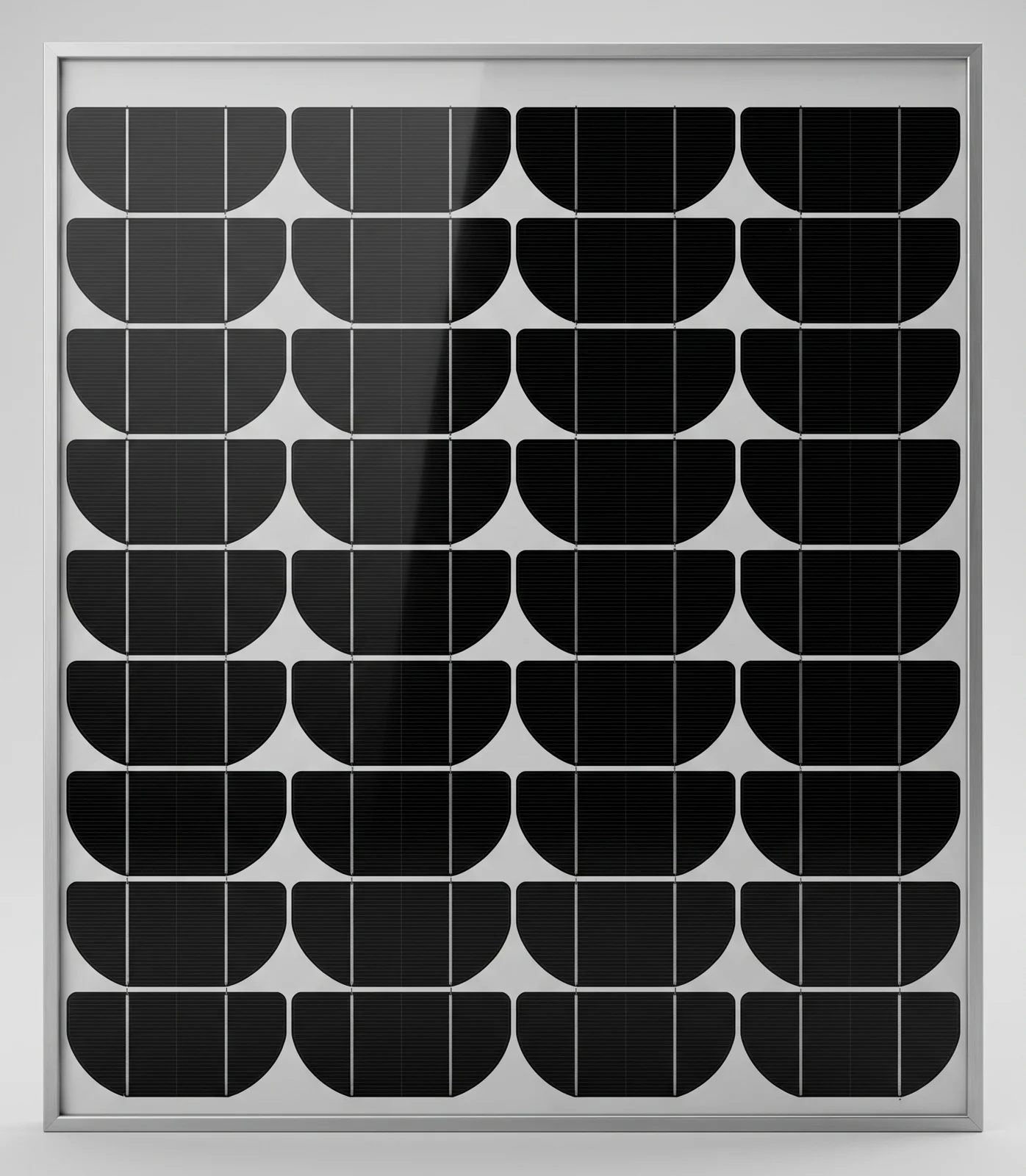

36 W

Siemens SP3612 V / 6 V · silicon (sp series)

75 W

Siemens SP75 / SP7012 V / 6 V · silicon (sp series)

50 W

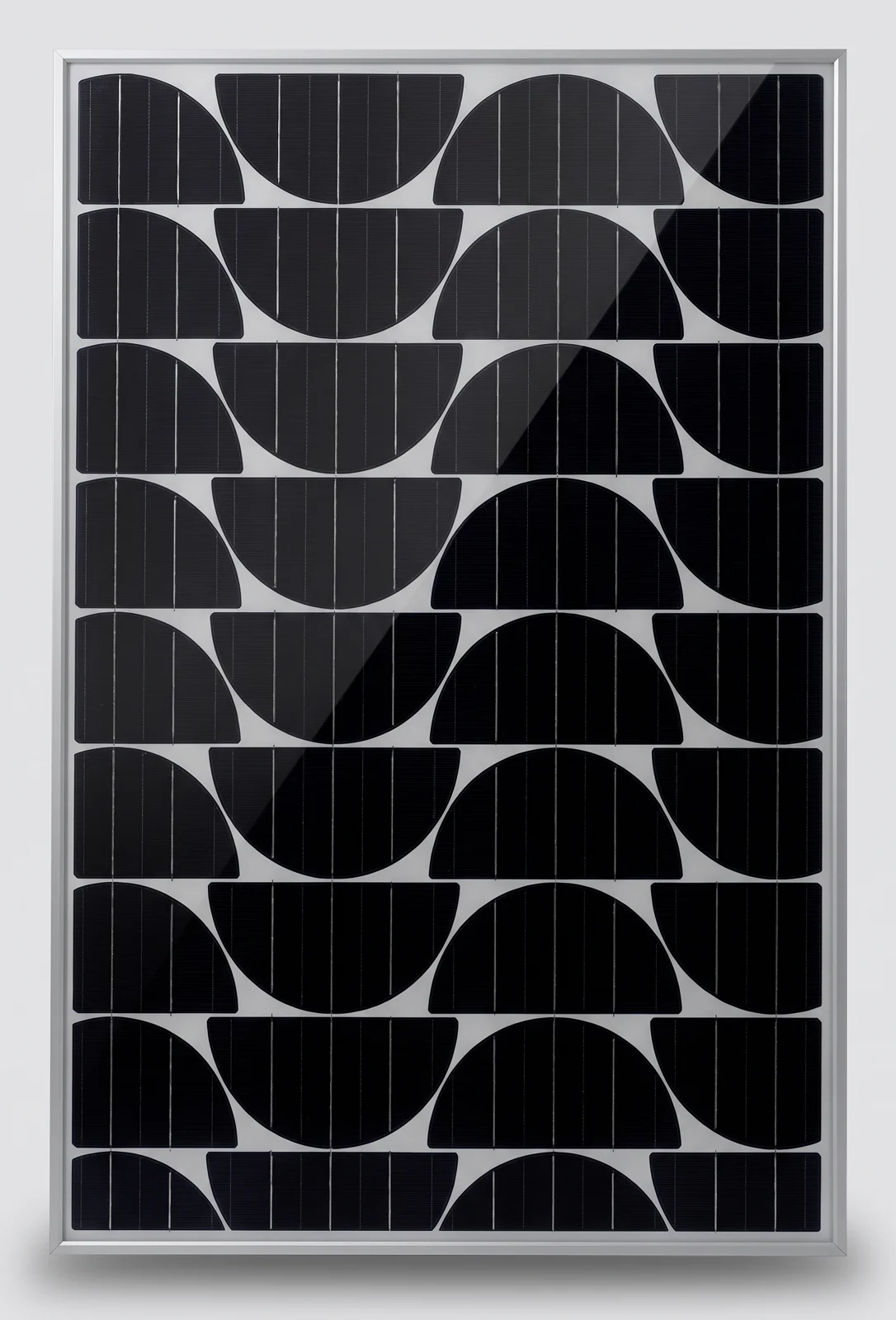

Siemens SR50 / SR50Z12 V / 6 V · silicon (sr series)

100 W

Siemens SR100 / SR9012 V / 6 V · silicon (sr series)

5 W

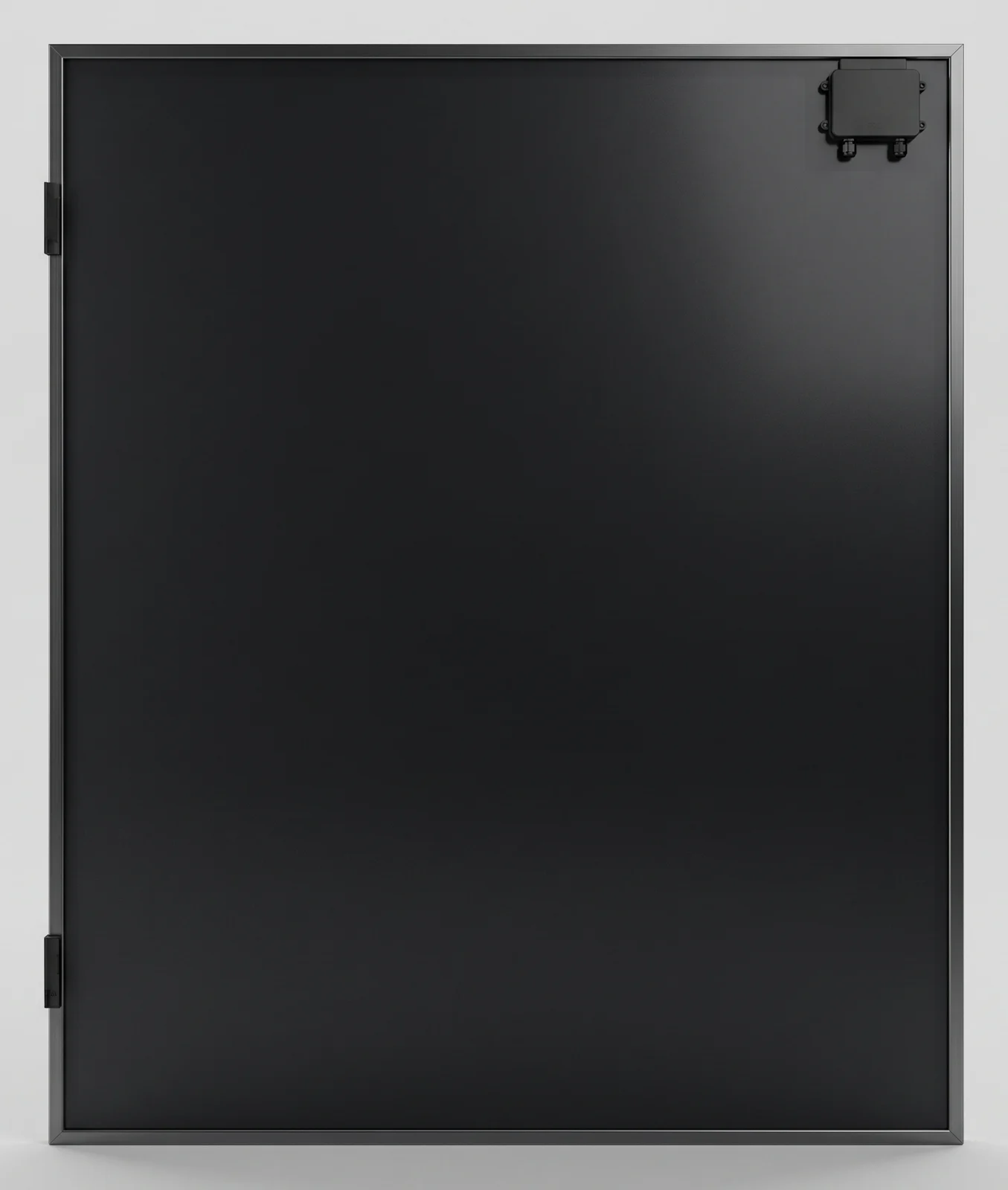

Siemens ST512 V · cis thin film

10 W

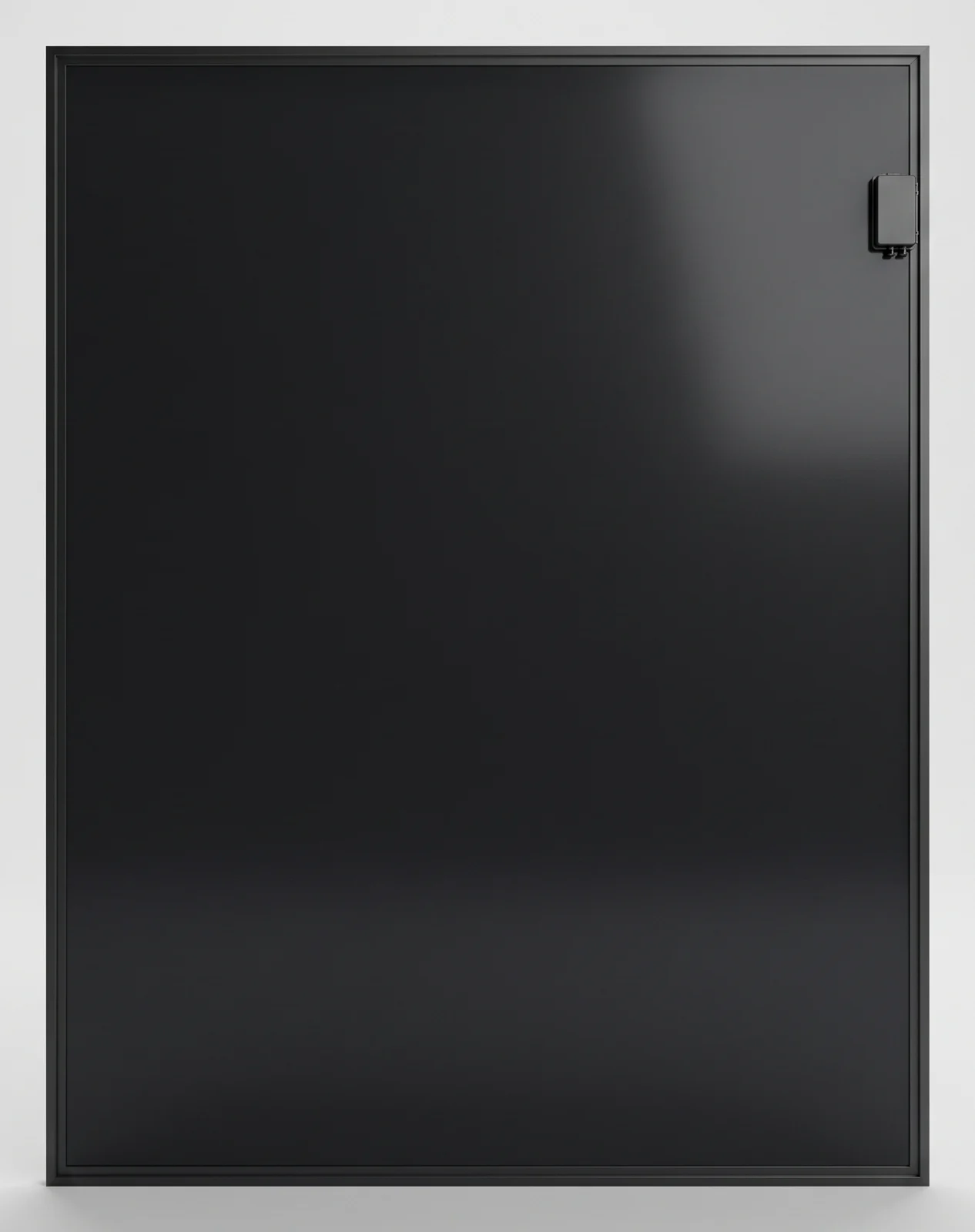

Siemens ST1012 V · cis thin film

20 W

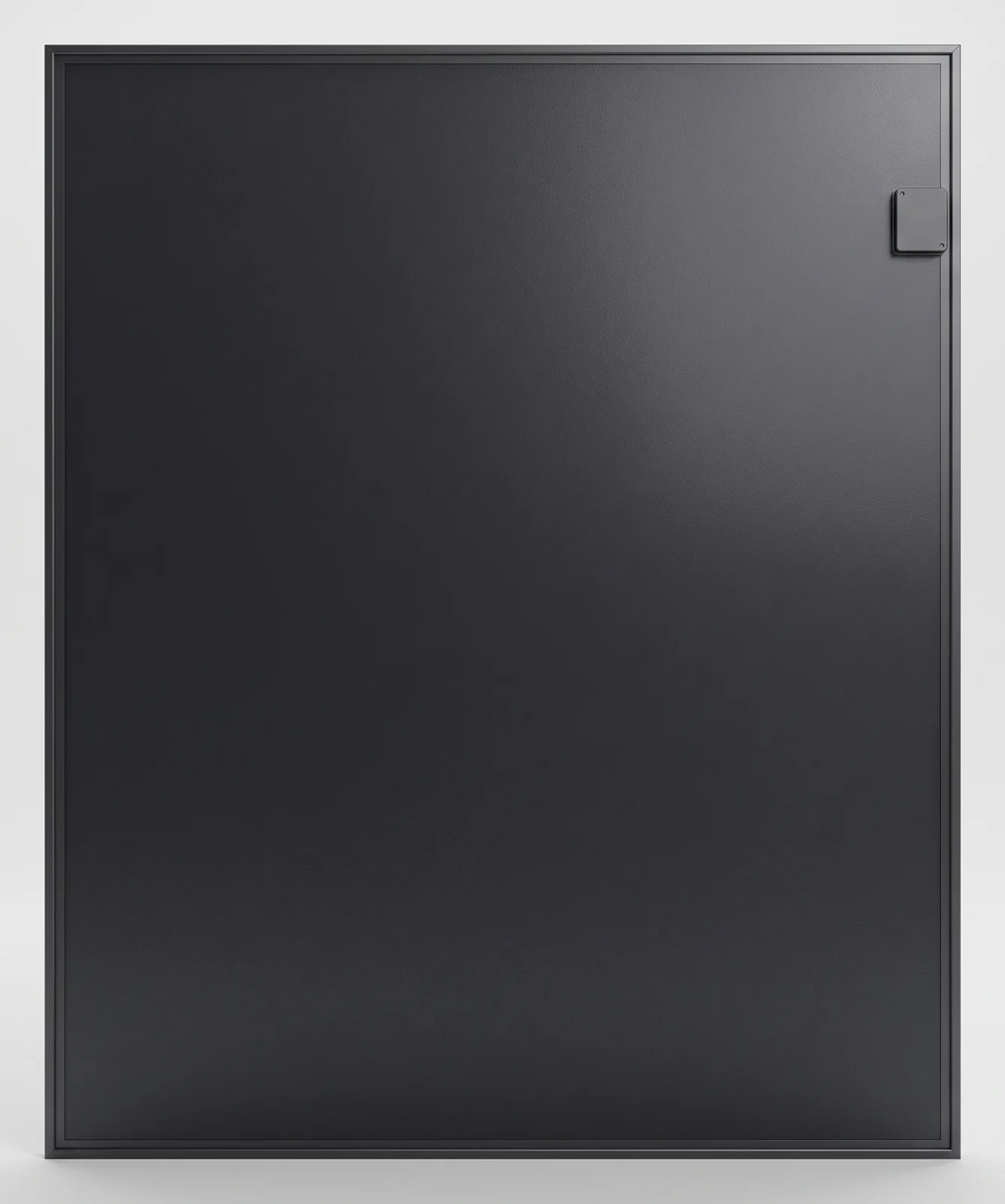

Siemens ST2012 V · cis thin film

40 W

Siemens ST4012 V · cis thin film

Quick reference

Datasheet values for the first (12 V) variant; dimensions in mm, weight in kg. n/r = not recorded in the datasheet. Siemens’ product list also named an SP10 (10 W); no datasheet for it is reproduced here.

Model	Series	Pmax (W)	Vmp (V)	Voc (V)	Isc (A)	Cells	L × W (mm)	kg
SM6	SM	6	15	19.5	0.42	33	330 × 175	1
SM10	SM	10	16.3	19.9	0.71	34	360 × 330	1.8
SM20	SM	20	14.5	18	1.6	30	567 × 328	2.5
SM46	SM	46	14.6	18	3.35	30	1083 × 329	4.6
SM50-H	SM	50	15.9	19.8	3.35	33	1219 × 329	5.2
SM55 / SM50	SM	55	17.4	21.7	3.45	36	1293 × 329	5.5
SM110 / SM100	SM	110	17.5	21.7	6.9	72	1316 × 660	11.5
SP18	SP	18	17	21.7	1.2	36	633 × 275	2.7
SP36	SP	36	17	21.7	2.4	36	633 × 527	4.3
SP75 / SP70	SP	75	17	21.7	4.8	36	1200 × 527	7.6
SR50 / SR50Z	SR	50	17	21.6	3.2	36	783 × 594	5.9
SR100 / SR90	SR	100	17.7	22	6.3	36	1498 × 594	10.9
ST5	ST	5	15.6	21	0.37	thin film	n/r	1.4
ST10	ST	10	15.6	21	0.74	thin film	n/r	2.4
ST20	ST	20	15.6	21	1.48	thin film	n/r	4.1
ST40	ST	40	16.6	22.2	2.59	thin film	n/r	n/r

Tools

Array calculator: series and parallel counts, cold-weather open-circuit voltage, controller and battery checks.
Identify a module: match your measured Voc, Isc and size against the 16 models.
Compare all models: power, weight and power density.
System diagrams: directly connected, stand-alone, hybrid and grid-interactive layouts.
